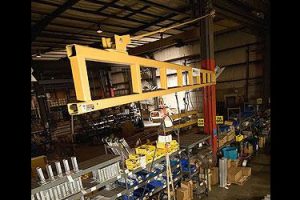

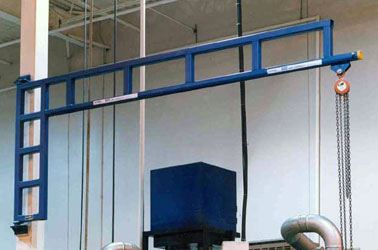

Wall Mounted Work Station Jib

tp-8

Capacity: 250-1,000 lbs
Span: 4-16 feet
Rotation: 200°

Work Station Wall Cantilever Jib Cranes are the ideal substitute for heavy I-Beam Jib Cranes. These jibs are designed to service circular areas and support tool balancers, vacuum lifters, and hoists. When column or wall mounted, they can handle up to a 200° rotation. Capacities from 100 lbs. to 1000 lbs. with spans up to 16 ft.

Applications

  • Covers circular areas.
  • Supporting balancers, vacuum lifters and hoists

Accessories

Festoon Clamps: Festoon clamps anchor the festooning at the start of the jib boom and also prevent the festoon gliders from exiting the track. Festoon clamps for vacuum hose are too.
Festoon Gliders: Festoon gliders are used to support flat electrical cable. No tools are required to attach the festooning. One festoon clamp is required with the use of festoon gliders.
Festoon Trolleys: festoon trolleys are used to support flat cable, air hose or round cable along the boom. The trolleys have four wheels and a pivoting festoon saddle. Festoon trolleys for vacuum hose are available too. One festoon clamp is required with the festoon trolleys.
Flat Cable or Air Hose: A flat cable festooning system is required when using an electrical powered hoist. Air hose is also available.
Air Swivel (Top or Bottom Entry): An air swivel is required to provide a continuous 360 degree boom rotation when using an air powered lifting device. A bottom entry air swivel needs an additional 5 inches of clearance above the pivot pin. A top entry air swivel needs between 8-1/2 and 9 1/2 inches (depending on span and capacity) of additional clearance above the pivot pin.
