Cantilever Jib


Capacity: 250-10,000 lbs
Span: 4-30 feet
Rotation: 200°

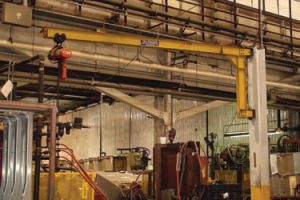

Wall Cantilever Jib Cranes provide hoist coverage and 200° rotation for individual use in bays, along walls, or columns of plants, or as a supplement to an overhead crane or monorail system. Wall cantilever jib cranes provide maximum lift for the hoist, because they can be installed very close to the underside of the lowest ceiling obstruction.


  • Coverage along walls or columns.
  • Individual work station use in bays.
  • Supplement to a large overhead crane or monorail crane system.


Retrofit I Universal Motorized Kit: ¼ ton up to 2 ton, 20 feet maximum span.
Retrofit II Universal Motorized Kit: 3 ton up to 5 ton, 20 feet maximum span.
  • Tagline Electrification.
  • Anchor Bolt Templates, both paper and plywood.
  • Multi-Position Lock Devices.
  • Single-Position Lock Devices.

Floor Mounted Jibs

Wall Mounted Jibs
